Citroen DS, Citroen ID Classic Car Fuel Injection Conversion fitted with existing Bosch EFI system
Based on our Universal Vehicle Kit for with 4 injectors Single carburettor upto 136 BHP
with Custom DS wiring harness.
Our kit is offered as an alternative to the original Citroen Bosch
Fuel Injection system which often is very problematic on today's
vehicles.
Our injectors mount in a similar location to the originals so with some
minor inlet manifold machining you can have a similar looking vehicle
with all the benefits of an electonic fuel injection system.
This kit contains all the parts needed for our Classic Fuel Injection system
(you do not need to order anything else from our range )
You remove the exisiting Bosch EFI components and then replace with our new modern injection system to give you an updated and more reliable fuel injection system with electronic ignition.
Notes for Ignition Distributor
The 123 Distributor is probably not compatible.
Nor is the original DS EFI distributor ( it would work but not enough internal space to modify it )
We advise replacing the 123 or original DS EFI Distributor with an old " Ducelier " distributor from a non EFI DS and modify that for use with our kit
( Avoid the Citroen DS " SEV " Distributor, as it showed some problems on another DS and there is not a modification kit available)
We have assembled this kit for easy ordering but if you prefer you can still order some or all of the parts using our individual listings
Ordering our kits will also save you money, our kits are typically 10 to 15% cheaper than ordering individual parts
This kit contains
Engine ECU - Based on the MaxxECU MINI ECU
ECU software
ECU to Laptop communication lead
Engine Sensor Kit Comprising -
Throttle Position Sensor
Coolant Temperature Sensor
Manifold Absolute Pressure Sensor
Distributor Sensor
Distributor Pickup for 4 cylinder
Ignition Amplifier
Idle Control Valve and housing
Wide Band Oxygen Sensor Amplifier
Wide Band Bosch Oxygen Sensor
Weld On Oxygen Sensor Boss
Fuel System Kit Comprising -
High Pressure Fuel Pump
Fuel Pump Brackets
Inline Fuel Filter
Fuel Filter Bracket
Fuel Pressure Regulator
10m of High Pressure Fuel Hose
Fuel Hose Clamps
Fuel Injector Kit Comprising -
4 x Bosch Fuel Injector for total engine power upto around 136 BHP --- Includes Bosch " Fat Body " style injectors for easier replacement of originals
4 x Fuel Injector High Pressure Hose Fittings for Fuel Inlet
8 x Fuel Injector Mounting Plates
0 x M6 Mounting Plate Fixings
1 x Idle Air Take Hose Fittings
Electrical Wiring
Four injector custom DS wiring loom ready to install
Please note this kit does not contain nuts, bolts and other fixings or adapters as they will be specific to your application but will easily be sourced from your normal suppliers or your existing workshop stock of parts.

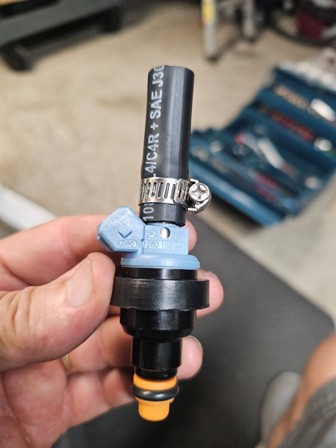

Example of a " Fat Body " Injector that has been modified to work with old style Bosch Tube Fuel Rail
( you will need to trim away top plastic surround to allow pipe to be fitted in the same manner as the photo )
