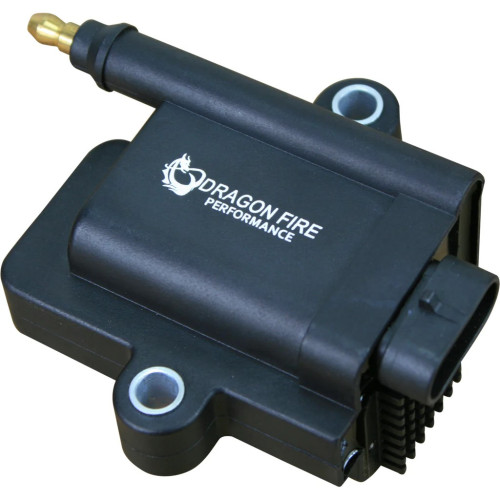

Dragon Fire Performance Smart Universal Race Coil, All 1997-2020 GM LS/LT V8, IGN-1A
THIS LISTING IS FOR RETAIL CARTON OF 8 X DRAGRONFIRE SMART COILS
Compatible with
AEM IGN1A
AEM 30-2853
AMP EFI IGN1A
Haltech IGN1A
Haltech HT-020114
Mototron IGN1A
Can be used for " Coil Near Plug " applications and also as a high power Single Coil for Distributor equipped vehicles
Overview:
-
Brand: Dragon Fire Performance
-
Coil Style: Coil Near Plug
-
Coil Color: Black
-
Internal Construction: Epoxy
-
Coil Boot: N/A
-
Maximum Output Voltage: 44kV
-
Maximum Input Voltage: 17kV
-
Trigger Input Signal: 5v
-
Primary Resistance: .50 ohms
-
Secondary Resistance: 6.62k ohms
-
Inductance: 5.2mH
-
Spark Duration: 2.5 ms
-
Mounting Bracket: No
-
Coil Wire: HEI Type Compatible (Plug Wires Not Included)
-
Coil Shape: Square
-
Quantity: Sold individually.
-
Replaces OEM Part Number(s): IGN-1A
Engineered to provide strong, reliable spark at high RPM, high
Compression, or during forced induction. Watertight, weatherproof
connector designed using advance thermoresistant plastic to resist
fracture and cracking from radiant heat and thermal cycling. Tested and
ensured to exceed OE output voltage. High-temp epoxy filled construction
to prevent voltage leaks and RFI interference. Oversized performance
grade primary & secondary bobbins with premium copper windings to
ensure peak performance under load and excellent service life.
Features and specs:
* DIY Easy LS/LT Ignition Upgrade
* High Energy Output
* High RPM Rated for NA or Boosted Applications
* Performance Grade Bobbins
* Brass High Tension HEI Terminal
* Premium Epoxy Construction
* Manufactured in ISO9001:2015 and ISO/TS 16949:2009 certified
facilities under strict quality control to ensure long service life and
perfect fitment
Included in the box:
1 x Dragonfire Performance Smart Ignition Coil
1 x Electrical Connector
5 x Electrical Terminals
2 x Mounting Bolts
Wiring Information:
Pin A: 5 Volt Control Signal from ECU
Pin B: Logic Ground
Pin C: Spark Ground
Pin D: Power Ground
Pin E: + 12V
Pin B and Pin D: Ground wires can be connected to engine block or cylinder head
Pin C: Ground wire should be connected to the same cylinder head that the connected spark plug is fitted to
The
connector plug for this coil is a “pull-to-seat” type, this requires
the unterminated wire to be pushed all the way through the plug housing
first,
then the terminal is crimped on before pulling the wire and terminal back into the housing.
Dragon Fire Performance Smart Ignition Coil x 8 - IGN 1A . AEM, AMPEFI, HALTECH, MOTOTRON compatible
