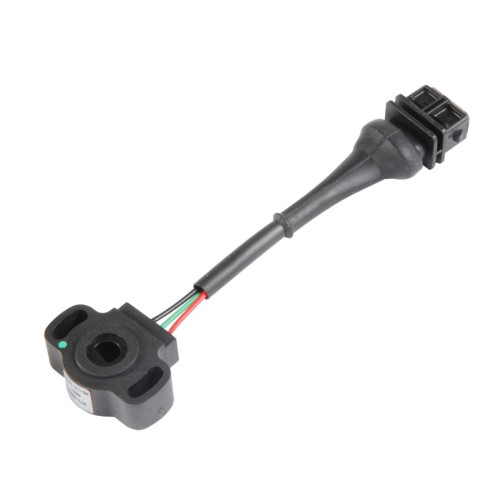

Throttle Position Sensor ATP200 / Wabash 97
Used as an upgrade option on our CFI system and many other fuel injection system.
The trick with this sensor is it can be mounted either way around on the shaft so it is bi directional useful where our standard sensor turns the wrong way for your installation
( It has the same mounting as our usual MGF Throttle Position Sensor - so an easy swap to make )
Universal Throttle Body TPS
Wabash 971 rotary position sensor
A superior quality throttle position sensor for general use on Throttle bodies
UK manufactured and supplied with 3 pin connector.
RED = +ve supply (usually 5V from ECU)
GREEN = TPS Signal (to ECU )
BLACK = -ve (ground)
It uses a common 7mm diameter "D" shape drive and is mounted via the 4mm holes.
Sensor has a standard 3 pin junior timer socket.
Resistance = 5K ohm.
Mounting Details:
Distance between mounting holes (center to center) approx = 32mm
Holes and spindle shaft are inline
Spindle drive should be 7mm OD with flat side
