Our Classic Fuel Injection systems are E10 fuel compatible
Volvo- Classic Car Fuel Injection Conversion - 4 Injector Upgrade Kit
This kit is designed to upgrade the earlier electronic version used on some Volvo's where they have 4 x hose style fuel injectors fitted to inlet manifold and a central throttle body and plenum arrangement
The original inlet, plenum chamber and throttle body from the original setup are retained.

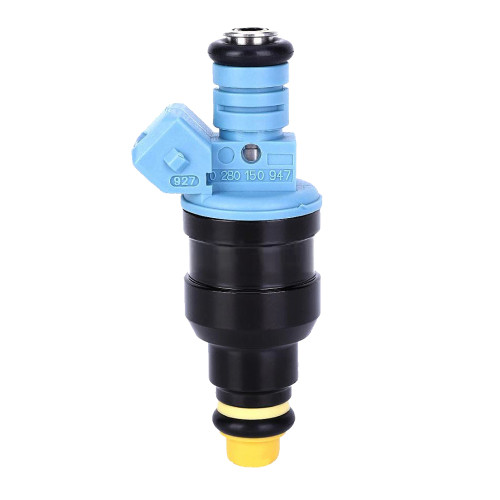

This kit contains new Bosch " EV1 Fat Body " injectors to replace existing and make use of the existing clamp arrangment to hold them in place.

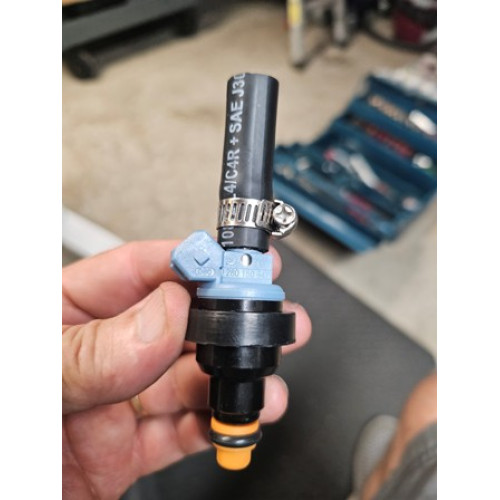

You can also modify the injectors to fit a short hose or pipe arrangement on the top joint to suit cars with a " Hose Style " Fuel Rail
See pictures of the injector as standard and as modified
You can order this kit if you wish to carry out a similar upgrade or if you prefer to adapt your existing vehicle to a similar setup by sourcing your own inlet arrangment.
This kit contains all the parts needed for our Classic Fuel Injection system
(you do not need to order anything else from our range )
This kit contains
Engine ECU - MaxxECU MINI ECU
ECU software
ECU to Laptop communication lead
Engine Sensor Kit Comprising -
Throttle Position Sensor
Coolant Temperature Sensor
Manifold Absolute Pressure Sensor
Distributor Sensor and Pickup -- ** ( WE WILL NEED TO KNOW WHICH DISTRIBUTOR MODEL YOU HAVE FITTED **
Ignition Amplifier
Idle Control Valve and housing
Wide Band Oxygen Sensor Amplifier
Wide Band Bosch Oxygen Sensor
Weld On Oxygen Sensor Boss
Fuel System Kit Comprising -
High Pressure Fuel Pump
Fuel Pump Brackets
Inline Fuel Filter
Fuel Filter Bracket
Fuel Pressure Regulator
10m of High Pressure Fuel Hose
Fuel Hose Clamps
Fuel Injector Kit Comprising -
4 x Fuel Injectors for total engine power upto around 180 BHP
( EV1 " Fat Body " Style to suit existing injector clamp arrangments )
4 x Fuel Injector Individual Top Mounts
1 x Hosetail Idle Air Hose Fittings
Electrical Wiring
Four injector universal wiring loom ready to install
THIS KIT DOES NOT CONTAIN THE INLET MANIFOLD ELBOWS, PLENUM OR THROTTLE BODY, IT IS ASSUMED YOU ALREADY HAVE THESE PARTS OR ARE SOURCING FROM ELSEWHERE.
Please note this kit does not contain nuts, bolts and other fixings or adapters as they will be specific to your application but will easily be sourced from your normal suppliers or your existing workshop stock of parts.
Classic Fuel Injection Conversion, Volvo - 4 Injector Upgrade Kit
-
£1,800.00
- Ex Tax: £1,800.00
Related Products
Classic Fuel Injection
Throttle Position Sensor ATP200 / Wabash 97
Used as an upgrade option on our ..
£77.00
Ex Tax: £77.00
Tags:
Classic Fuel Injection Conversion,
Volvo - 4 Injector Upgrade Kit
IMPORTANT INFORMATION RELATING TO OUR COMPLETE FUEL INJECTION VEHICLE KITS
These kits are only suitable for vehicles with a Negative Earth electrical system.
If your vehicle is the older Positive Earth then you must convert the vehicle to Negative Earth before fitment.
Many older vehicles have already been converted but if you need to convert this is normally a simple process often cost free.
The full vehicle kits will normally be supplied with the ECU pre loaded with an initial start file.
This initial start file is simply provided as an aid for
engine starting, it should not be considered a suitable final
calibration for your engine.
You must be prepared to undertake further ECU calibration work to ensure the ECU files are tailored to your vehicle.
Failure to successfully complete the calibration process may lead to poor vehicle driveability or even damage to your engine.
Our Classic Fuel Injection Kits are custom built to order and to the
customer general specification and as such are exempt from automatic
return rights under Consumer Contract regulations.
By ordering this
conversion kit you understand that further ECU calibration work will be
required and the final results are outside of our control.
We cannot accept returns or claims arising from failure to successfully complete the calibration process.
